Mass Flowmeter
Mass Flow, Density and Concentration Metering (PIOX S)
Mass Flow, Density and Concentration Measurement without media contact
PIOX S721 determines mass flow rate, concentration, density and other parameters by means of clamp-on ultrasonic transducers mounted on the outside of the pipe. The non-invasive acoustic technology is the system of choice when substances and processes place highest demands on safety and reliability.
Indestructible as a matter of principle
In a large number of binary media systems, the acoustic velocity is in a fixed proportion to concentration and density. PIOX S721 measures the acoustic velocity, thereby determining the density and concentration of the medium inside the pipe. By simultaneously recording the volume flow rate, PIOX S721 automatically calculates the mass flow rate.
Applications
• For virtually all pipe sizes and materials – regardless of whether it‘s steel, plastic, glass or special materials with coatings• For temperatures up to 400 °C• For almost all acids, caustics and a wide range of other toxic media• For hazardous areas – transducers and transmitters are available in ATEX, IECEX and FM certified variants• For 100% plant availability – the measurement point can be set up during ongoing operation
The ideal "Outsider"
The PIOX S measuring system, composed of a transmitter and a pair of clamp-on transducers, precisely determines the sonic velocity of the medium based upon the ultrasonic transit-time measured between the two transducers.The clamp-on transducers are mounted on the outer surface of the pipe. As they are not in contact with the medium, the system is ideally suited for the measurement of chemically aggressive, corrosive, abrasive or ultra-pure media.
PIOX S can be used to determine the concentration of high purity sulfuric acid, hydrofluoric acid, nitric acid or even ammonia gas used in fertilizer plants. Worries about the transducers chemical compatibility, contamination and sealing are a thing of the past.
With the clamp-on technology, retrofitting of existing installations is very easy and can be done without cutting into the pipe and without any process interruption.
Applications
Precise and reliable
• Permanently stable measurement without any drift
• Accurate measurements at the lowest and highest flow velocities
• Independent of entrained solids or gas
• Continuous monitoring of measurement quality
Cost-effective and economical
• No plant shutdown for commissioning
• No special materials or bypass solutions required
• No early failure of measuring system
• Simultaneous determination of mass flow as well as concentration and density
Durable and long term stability
• No media contact, therefore no risk of corrosion
• No moving parts, no vibrations, no material fatigue
• No pressure limitations
• For harsh industrial environments
Safe and available
• Mounting of the measurement system outside of the pipe, no need for pipe modifications
• Maintenance-free measurement system
• No leakage risk
Applications
• Oil & Gas
- Underground Gas Storage & Processing
- Onshore / Shale Oil & Gas Solutions
• Chemical Industry
- Acid and Caustics Production
- Chlorine Alkali Electrolysis
- Fertilizer Plants
• Industry Solutions
- Pharmaceutical Industries
- Pulp & Paper
- Mining
- Marine
Technical Facts
Measurement uncertainty
(volumetric flow rate) ±1 % of reading ±0.005 m/s Repeatability0.15 % of reading ±0.005 m/s Flow velocity range0.01...25 m/s Ex zone transmitterATEX/IECEx Zone 2, FM Class I /Div 2 Power supply100-230VAC, 24DC, 12DCAvailable transducer Shear Wave for Ex zones--- for pipe sizes range10mm ... 6500mm for temperature range-40°C ... +240°C / WI: -200°C ... +600°C Outputs4-20mA active/passive
4-20mA HART active/passive
pulse/frequency/binary InputsPt100/Pt1000
4-20mA active/passive
Binary input Digital communicationModbus RTU/TCP
BACnet MSTP/IP
Profibus PA
Foundation Fieldbus Additional InformationFor more detailed Information please download the Technical Specifications
관리자 2020.06.05
PIOX S721 determines mass flow rate, concentration, density and other parameters by means of clamp-on ultrasonic transducers mounted on the outside of the pipe. The non-invasive acoustic technology is the system of choice when substances and processes place highest demands on safety and reliability.
Indestructible as a matter of principle
In a large number of binary media systems, the acoustic velocity is in a fixed proportion to concentration and density. PIOX S721 measures the acoustic velocity, thereby determining the density and concentration of the medium inside the pipe. By simultaneously recording the volume flow rate, PIOX S721 automatically calculates the mass flow rate.
Applications
• For virtually all pipe sizes and materials – regardless of whether it‘s steel, plastic, glass or special materials with coatings• For temperatures up to 400 °C• For almost all acids, caustics and a wide range of other toxic media• For hazardous areas – transducers and transmitters are available in ATEX, IECEX and FM certified variants• For 100% plant availability – the measurement point can be set up during ongoing operation
The ideal "Outsider"
The PIOX S measuring system, composed of a transmitter and a pair of clamp-on transducers, precisely determines the sonic velocity of the medium based upon the ultrasonic transit-time measured between the two transducers.The clamp-on transducers are mounted on the outer surface of the pipe. As they are not in contact with the medium, the system is ideally suited for the measurement of chemically aggressive, corrosive, abrasive or ultra-pure media.
PIOX S can be used to determine the concentration of high purity sulfuric acid, hydrofluoric acid, nitric acid or even ammonia gas used in fertilizer plants. Worries about the transducers chemical compatibility, contamination and sealing are a thing of the past.
With the clamp-on technology, retrofitting of existing installations is very easy and can be done without cutting into the pipe and without any process interruption.
Applications
Precise and reliable
• Permanently stable measurement without any drift
• Accurate measurements at the lowest and highest flow velocities
• Independent of entrained solids or gas
• Continuous monitoring of measurement quality
Cost-effective and economical
• No plant shutdown for commissioning
• No special materials or bypass solutions required
• No early failure of measuring system
• Simultaneous determination of mass flow as well as concentration and density
Durable and long term stability
• No media contact, therefore no risk of corrosion
• No moving parts, no vibrations, no material fatigue
• No pressure limitations
• For harsh industrial environments
Safe and available
• Mounting of the measurement system outside of the pipe, no need for pipe modifications
• Maintenance-free measurement system
• No leakage risk
Applications
• Oil & Gas
- Underground Gas Storage & Processing
- Onshore / Shale Oil & Gas Solutions
• Chemical Industry
- Acid and Caustics Production
- Chlorine Alkali Electrolysis
- Fertilizer Plants
• Industry Solutions
- Pharmaceutical Industries
- Pulp & Paper
- Mining
- Marine
Technical Facts
Measurement uncertainty
(volumetric flow rate) ±1 % of reading ±0.005 m/s Repeatability0.15 % of reading ±0.005 m/s Flow velocity range0.01...25 m/s Ex zone transmitterATEX/IECEx Zone 2, FM Class I /Div 2 Power supply100-230VAC, 24DC, 12DCAvailable transducer Shear Wave for Ex zones--- for pipe sizes range10mm ... 6500mm for temperature range-40°C ... +240°C / WI: -200°C ... +600°C Outputs4-20mA active/passive
4-20mA HART active/passive
pulse/frequency/binary InputsPt100/Pt1000
4-20mA active/passive
Binary input Digital communicationModbus RTU/TCP
BACnet MSTP/IP
Profibus PA
Foundation Fieldbus Additional InformationFor more detailed Information please download the Technical Specifications
관리자 2020.06.05

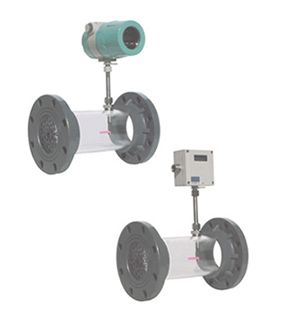

FLG Mass Flowmeter(3200Series)
3200S 고성능 삽입식 질량유량계는 산업현장에서 가스의 흐름을 감지하고, 가스유량의 조정, 측정등의 장소에 적용한다. 센서 설치 고정형 및 분리형이 가능하며, 마이크로 프로세서 사용으로 유량측정, 유량조정, 진단을 동시에 진행한다.Type센서유형센서설치 고정형, 분리형Accuracy정밀도교정범위 10 ~ 100% 내에서 reading ±2%
교정범위 10% 이내에서 F.S.의 ±0.5%Repeatability재현성±0.2% of full scaleTemperature
Coefficient온도 보상±0.02% reading/±50℉ 이내에서 ℉
±0.03% reading/±50℉ ~ 100℉ 내에서 ℉
±0.04% reading/±25℃ 이내에서 ℃
±0.06% reading/±25℃ ~ 50℃ 내에서 ℃Pressure
Cofficient압력 보상±50 psia(3.4bar) 이내에서는 무시할 정도이며,
압력에서는 특수교정이 필요Response Time응답 시간최종 유속값의 63% 내에서 1초 이내Kind of Fluid
(Gases)유체 종류
(가스)SUS316L에 화학 반응이 일어나지 않는
모든 가스 (제조사에 문의)Gas Pressure가스 압력
범위압축 Fitting : 500psia(34.5 barg)
150 lb flange or PN16 DIN(-40℉ to 100℉) : 230psia(15.9 barg)
150 lb flange or PN16 DIN(250℉) : 185psia(12.8 barg)
150 lb flange or PN16 DIN(450℉) : 155psia(10.7 barg)
NPT(-40℉ to 250℉) : 500psia(34.5 barg)Fluid Temperature
(Gas)유체 온도
(가스)15℉ ~ 250℉(-10℃ ~ 120℃)
-40℉ ~ 450℉(-40℃ ~ 230℃) 선택사항
사양보다 높은 온도는 제조사와 협의Ambient Temperature환경 온도-5℉ ~ 120℉(-20℃ ~ 50℃)Leak Integrity가스 누설
범위헬륨 가스로 최대 5 ×10^-4Power Supply공급 전원DC 24V ± 10%, 625mA(NEMA 4X)
90 ~ 240VAC ± 10%, 15Watts(EEx Type)Output Signal출력 신호선형의 0 ~ 10VDC, 4 ~ 20mAAlarm경보기High & Low 접점을 조정할수 있으며, Relay 접점 출력
(최대 42VDC or VAC, 140mA)Display액정 표시숫자문자식 2×16 배열 백라이트 LCD
계기판에 부착된 누름 버튼
자석식 센서 또는 RS-232C 인터페이스에 의한 Window에서 조정
조정변수 :
유량범위 (50 ~ 100%)
응답시간 (1 ~ 7초)
보정수치 (0.5 ~ 5)
제로 후 범위
High & Low Alarm settingTotalize적산량7자리의 공학 단위(9,999,999.9)
Software 또는 액정표시 창 버튼, 자석스위치에 의해서 재설정 가능Software소프트웨어MS Windows Software에 16MB RAM 사용(최소 8MB RAM 설치)
RS-232 통신 적용
추가 기능 :
알람 dead band 조정
Zero cut-off 조정
선형화 조정
Save/Load 환경설정
유량계 조건 확인Wetted Material유체 접촉 부분SUS 316LEnclosure보호 등급방폭 지역을 위한 Case(IP67) 또는 방수급의 NEMA 4X(IP65)Electrical
Connection전선 연결방폭 지역 2×3/4" NPT(좌우측 선택)
일반 지역 1×1/2" NPTPiping Requirement상하 직관부
조건제조사에 문의 Flovel 2009.06.01
3200S 고성능 삽입식 질량유량계는 산업현장에서 가스의 흐름을 감지하고, 가스유량의 조정, 측정등의 장소에 적용한다. 센서 설치 고정형 및 분리형이 가능하며, 마이크로 프로세서 사용으로 유량측정, 유량조정, 진단을 동시에 진행한다.Type센서유형센서설치 고정형, 분리형Accuracy정밀도교정범위 10 ~ 100% 내에서 reading ±2%
교정범위 10% 이내에서 F.S.의 ±0.5%Repeatability재현성±0.2% of full scaleTemperature
Coefficient온도 보상±0.02% reading/±50℉ 이내에서 ℉
±0.03% reading/±50℉ ~ 100℉ 내에서 ℉
±0.04% reading/±25℃ 이내에서 ℃
±0.06% reading/±25℃ ~ 50℃ 내에서 ℃Pressure
Cofficient압력 보상±50 psia(3.4bar) 이내에서는 무시할 정도이며,
압력에서는 특수교정이 필요Response Time응답 시간최종 유속값의 63% 내에서 1초 이내Kind of Fluid
(Gases)유체 종류
(가스)SUS316L에 화학 반응이 일어나지 않는
모든 가스 (제조사에 문의)Gas Pressure가스 압력
범위압축 Fitting : 500psia(34.5 barg)
150 lb flange or PN16 DIN(-40℉ to 100℉) : 230psia(15.9 barg)
150 lb flange or PN16 DIN(250℉) : 185psia(12.8 barg)
150 lb flange or PN16 DIN(450℉) : 155psia(10.7 barg)
NPT(-40℉ to 250℉) : 500psia(34.5 barg)Fluid Temperature
(Gas)유체 온도
(가스)15℉ ~ 250℉(-10℃ ~ 120℃)
-40℉ ~ 450℉(-40℃ ~ 230℃) 선택사항
사양보다 높은 온도는 제조사와 협의Ambient Temperature환경 온도-5℉ ~ 120℉(-20℃ ~ 50℃)Leak Integrity가스 누설
범위헬륨 가스로 최대 5 ×10^-4Power Supply공급 전원DC 24V ± 10%, 625mA(NEMA 4X)
90 ~ 240VAC ± 10%, 15Watts(EEx Type)Output Signal출력 신호선형의 0 ~ 10VDC, 4 ~ 20mAAlarm경보기High & Low 접점을 조정할수 있으며, Relay 접점 출력
(최대 42VDC or VAC, 140mA)Display액정 표시숫자문자식 2×16 배열 백라이트 LCD
계기판에 부착된 누름 버튼
자석식 센서 또는 RS-232C 인터페이스에 의한 Window에서 조정
조정변수 :
유량범위 (50 ~ 100%)
응답시간 (1 ~ 7초)
보정수치 (0.5 ~ 5)
제로 후 범위
High & Low Alarm settingTotalize적산량7자리의 공학 단위(9,999,999.9)
Software 또는 액정표시 창 버튼, 자석스위치에 의해서 재설정 가능Software소프트웨어MS Windows Software에 16MB RAM 사용(최소 8MB RAM 설치)
RS-232 통신 적용
추가 기능 :
알람 dead band 조정
Zero cut-off 조정
선형화 조정
Save/Load 환경설정
유량계 조건 확인Wetted Material유체 접촉 부분SUS 316LEnclosure보호 등급방폭 지역을 위한 Case(IP67) 또는 방수급의 NEMA 4X(IP65)Electrical
Connection전선 연결방폭 지역 2×3/4" NPT(좌우측 선택)
일반 지역 1×1/2" NPTPiping Requirement상하 직관부
조건제조사에 문의 Flovel 2009.06.01
